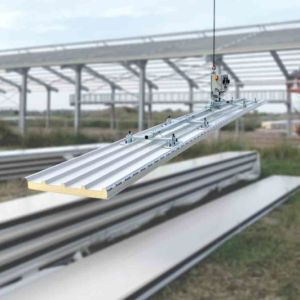

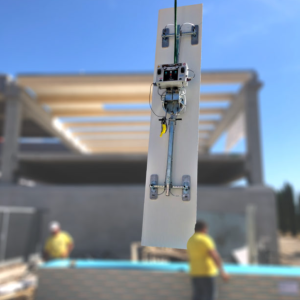

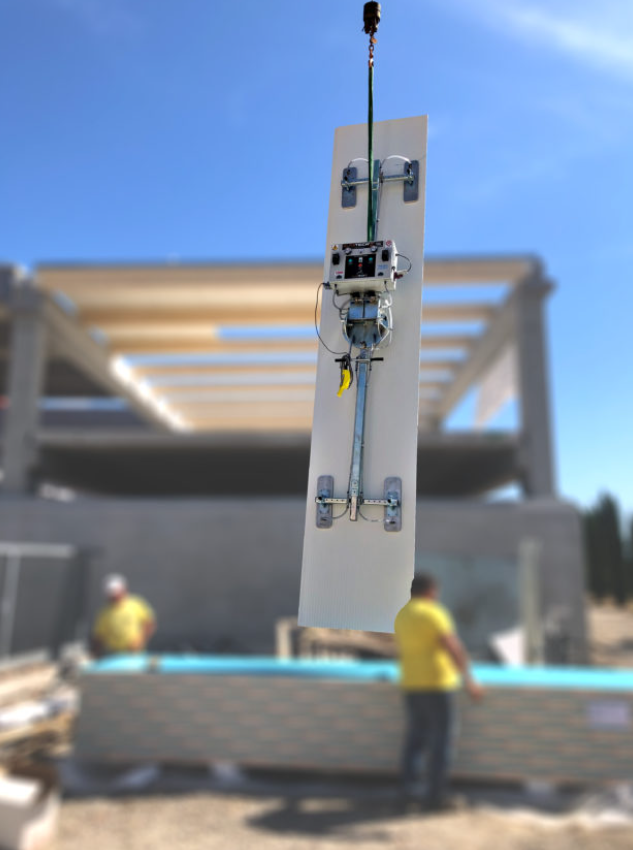

Vacuum Lifter for lifting and installation of wall and roof panels
A VPCRBm8P/B500
Capacity Kg.500
Number of plates 8
Plate dimensions (mm) 490 × 150
Min/max adjustment X (mm) 1300/4400/4800/8000
Min/maxY adjustment (mm) 900/500
TECHNICAL FEATURES:

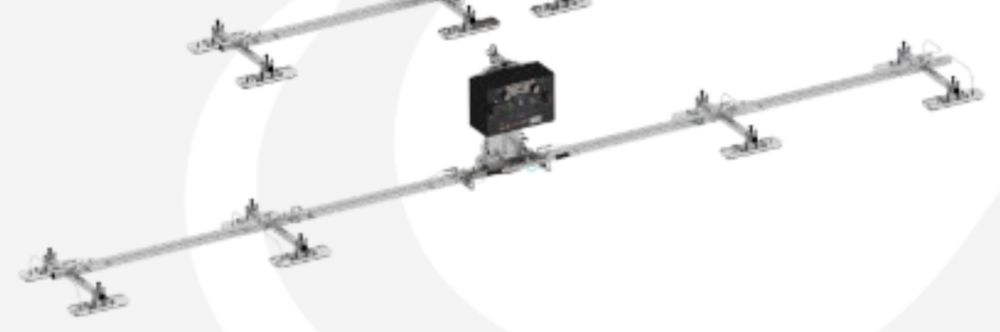

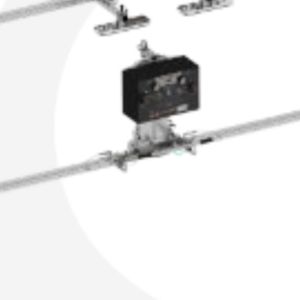

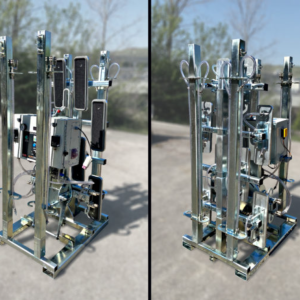

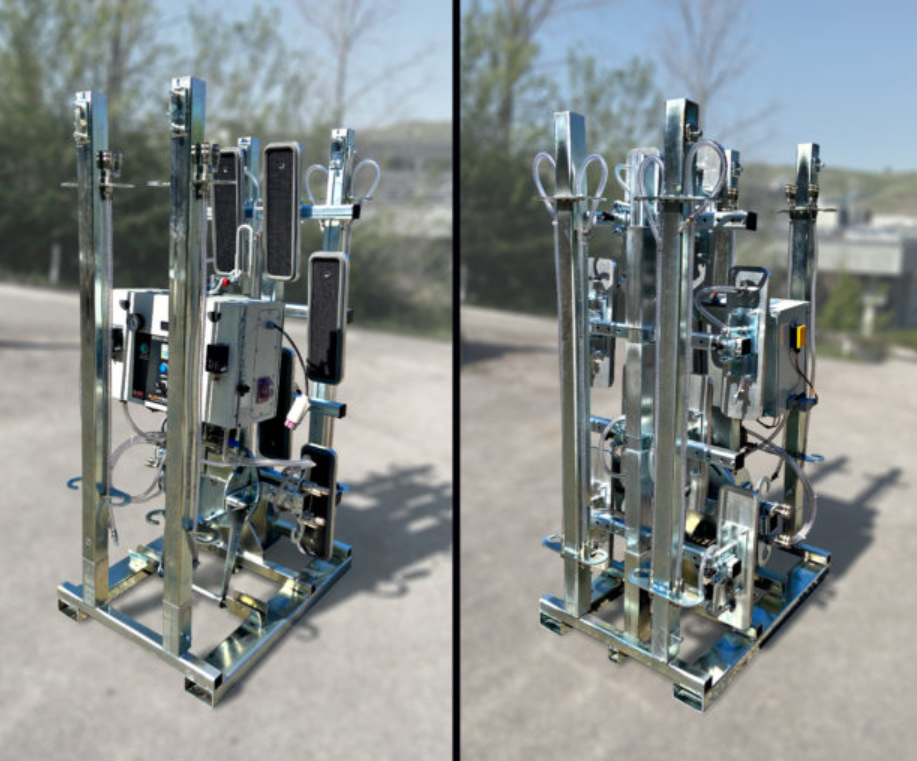

The suction cups for moving sandwich panels are made with eight plates, but due to its peculiarity of being modular it allows different types of layouts to be proposed, the capacity is 500 kg in the complete configuration.
They consist of:
a central metal structure with a fixed load-bearing frame made of high-yield steel carpentry on which are located:
the suction plates with longitudinal and transversal adjustment.

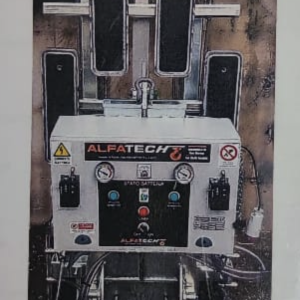

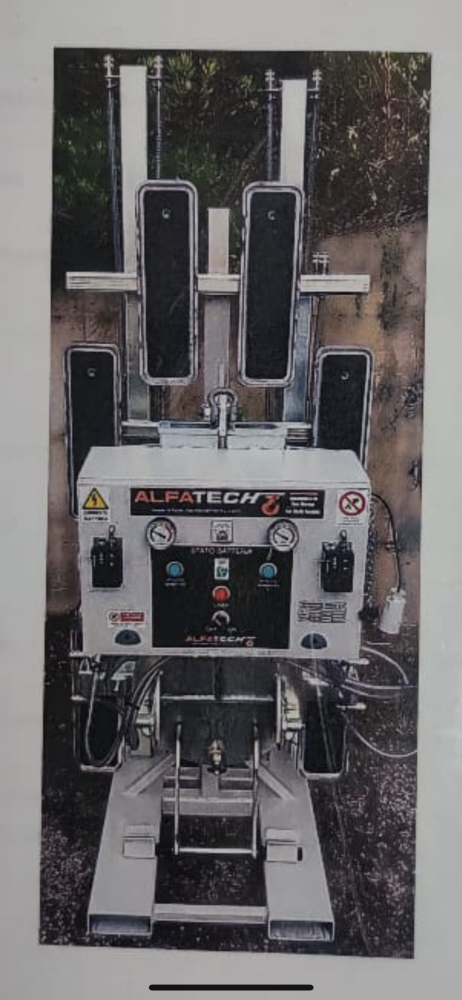

battery-powered vacuum pump on request it is possible to have a 380 Volt three-phase or 220 Volt single-phase electric pumping unit n.2 pre-vacuum tanks which guarantee the safety of the socket even in the event of a sudden lack of power to the pump
intake control vacuum gauges
Acoustic and visual alarm system powered independently by a rechargeable battery signals any decreases in operating pressure/depression.
Digital voltmeter for continuous monitoring of battery charge
grip handle on which there are controls for gripping and detaching the material.
Radio control and pendant control panel available
a tilting mobile structure
The suction cups for lifting and moving Alfatech sandwich panels are characterized by high maneuverability to adapt to all needs
working, is available in the version:
Manual tilting 0° - 90°
Manual rotation 0° - 90°
Electric tilting 0° -180° and 360° electric rotation
The type of panel to be lifted includes:
Smooth panels
Corrugated panels
